The disc screen consists of rotating discs for separating wastes through the clearance between the discs depending upon the size and the weight of the waste while the wastes move on the rotation discs. Disc screens are capable of separating contaminants, dust, combustible and non-combustible waste and are widely used in the waste treatment industry to separate non-sanitary landfill waste and mixed industrial waste.

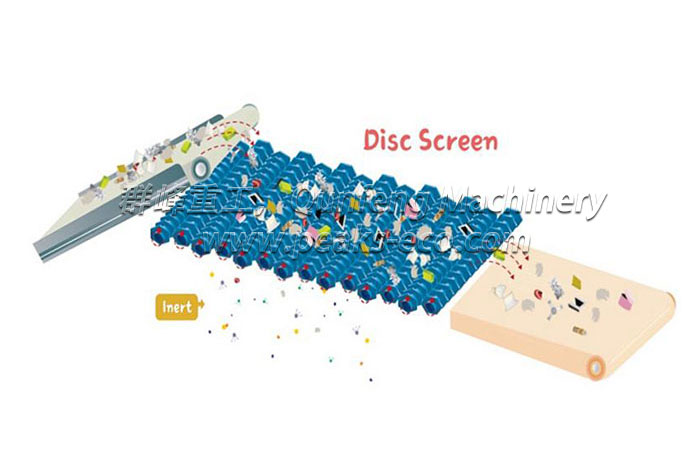

System for Separating Inert and Small Contaminants by the Openings between Discs

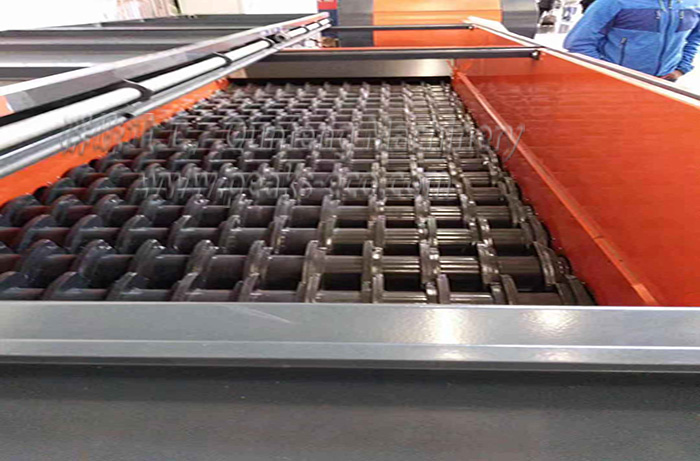

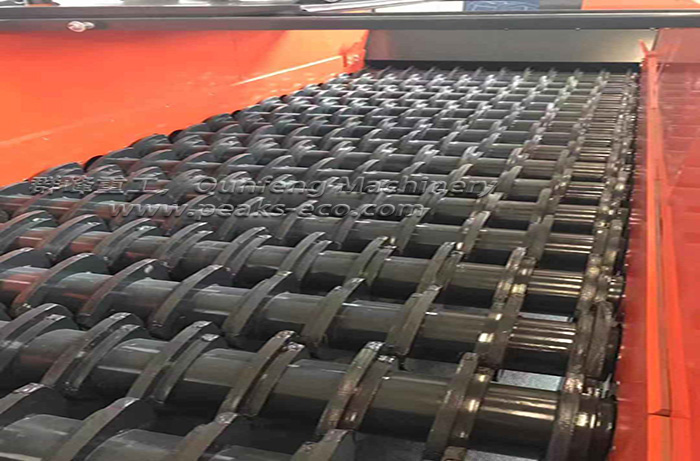

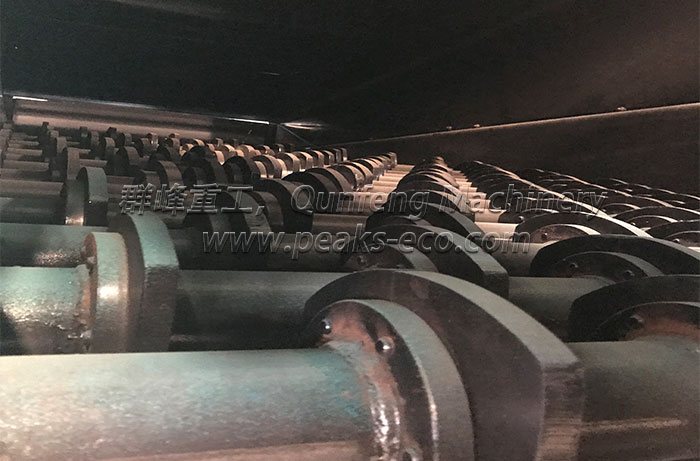

The disc screen consists of rotating discs for separating wastes through the clearance between the discs depending upon the size and the weight of the waste while the wastes move on the rotation discs.
10 to 20 discs are mounted on a long shaft depending on the working width of the screen. And the number of the shafts are depending on the capacity of the screen. These shafts simultaneously rotate by the driving force of the motor. The screen holes of other size screens are easily clogged by wet wastes due to moisture. The disc screen minimizes the clogging by the rotation movement of the discs.

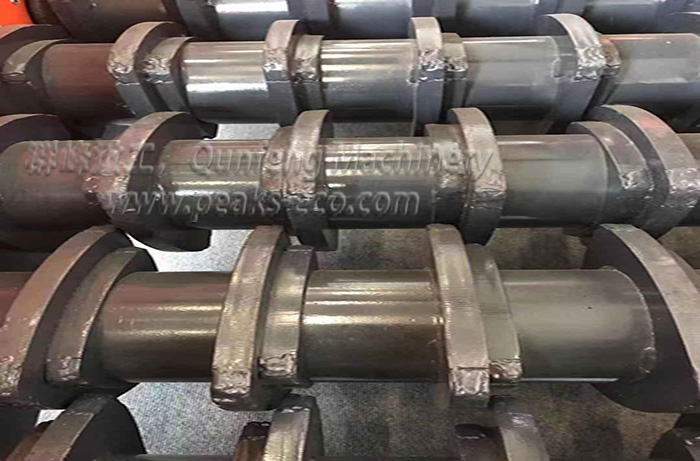

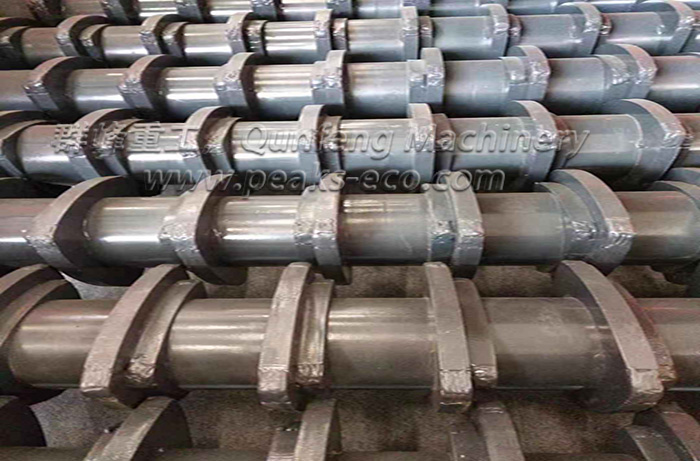

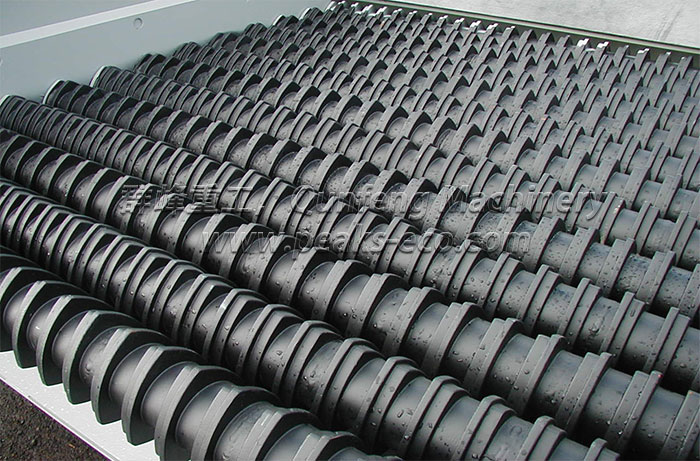

The disc screen consists of the rotating discs for separating wastes depending on the size and weight, the blower for separating combustible wastes, and the contaminant discharge system for glass pieces and small wastes, the rotation discs are made in various configurations such as pentagonal, octagonal, and star shapes.
The disc screen with these characteristics is capable of separating contaminants, dusts, combustible and incombustible wastes, and popularly applied in the waste treatment industry for separating the non-sanitary landfill site wastes and mixed industrial wastes. They can also be used on other types of systems, such as municipal solid waste, fiber sorting facilities and other streams that contain fibers. These separators are available with single, double, or even triple screening decks depending on application.
