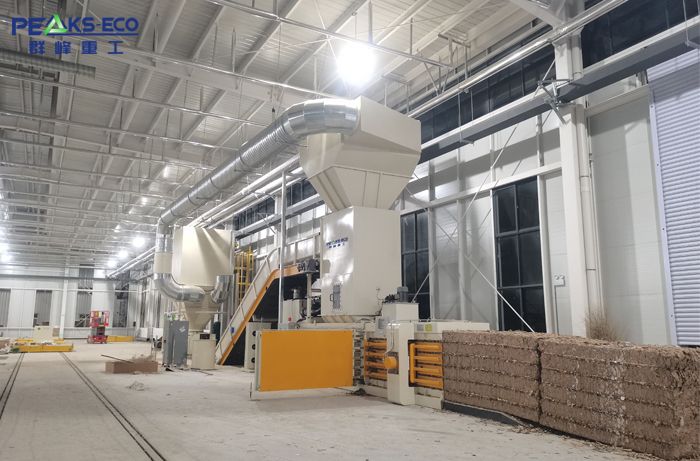

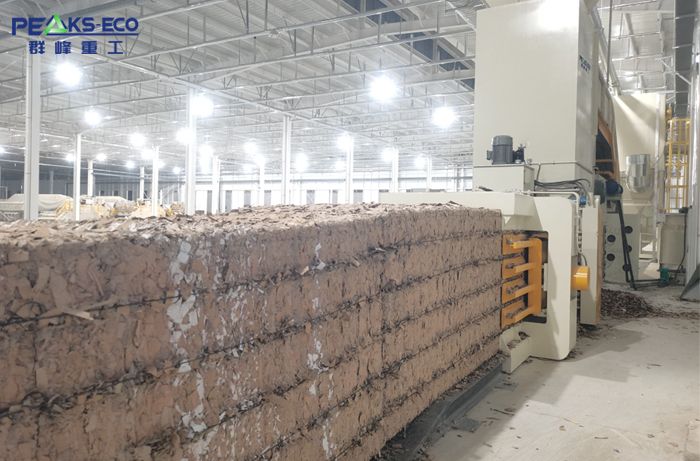

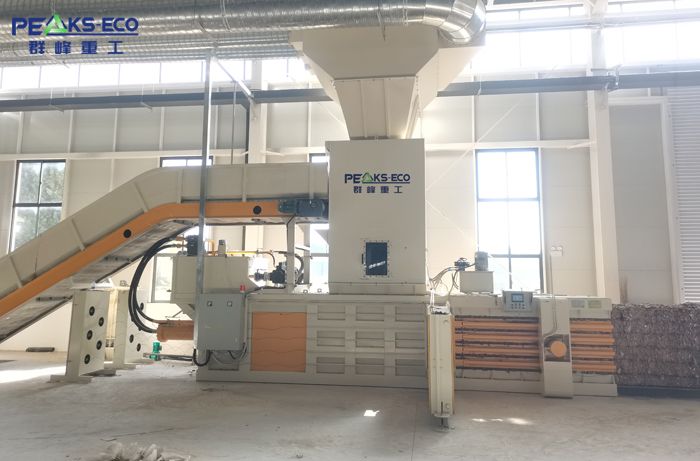

Type 850 baling press is a horizontal hydraulic baler designed for compressing cardboard, waste paper, plastic film, and packaging materials. Equipped with PLC control, 1100×850 mm bale chamber, adjustable bale length, and 3-wire strapping, it delivers stable performance, high bale density, and efficient operation for recycling centers, warehouses, and manufacturing facilities.
PLC control，human computer interface and window monitoring，sync action indication with error warning，can set the length of the bale；
Floating gate design，is conducive to the automatic distribution of all the pressure；
Equipped with distributed type shear knife on charging opening, high shear efficiency；
Strapping automatically, Speed up packaging.
Product name | Model 850 fully automatic baling machine |
Modes | Model 850 fully automatic |
Main cylinder | Φ220(cylinder diameter)/2600mm(stroke) |
Bale size | 1100(w)*850(h)mm*length adjustable |
Motor power | 30KW |
Bale density | About 450kg/m3 |
Strapping lines | 3lines |
Operation ways | PLC control，Strapping automatically |
Capacity | About 7-10 bale/h |
Product name | Model 850 semi-automatic baling machine |
Modes | Model 850 semi-automatic |
Main cylinder | Φ220(cylinder diameter)/2600mm(stroke) |
Bale size | 1100(w)*850(h)mm*length adjustable |
Motor power | 30KW |
Bale density | About 450kg/m3 |
Strapping lines | 3lines |
Operation ways | Push button operation, manual binding mode |
Capacity | About 6-9 bale/h |
Waste cardboard / Carton boxes
OCC (Old Corrugated Containers)
Waste paper / Paperboard
Plastic film (PE/PP)
Woven bags / Big bags
Light packaging materials
PET bottles (after pre-crushing)
