Underground Horizontal Waste Transfer Station System

    The system is composed of a 2-floor building of steal structure or concrete structure, compaction equipment, waste container, transfer vehicle and auxiliary devices.

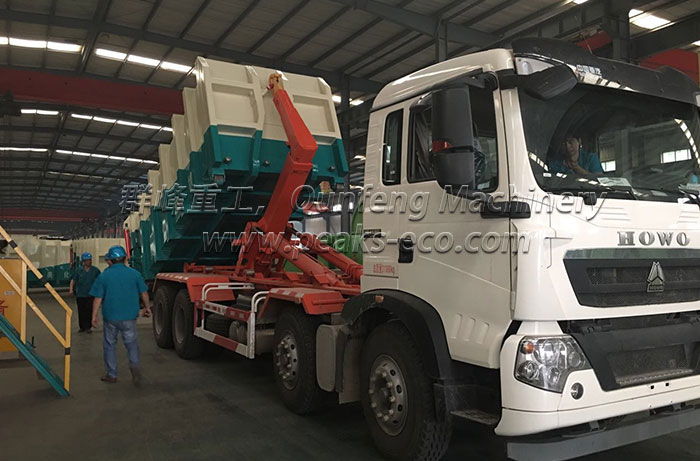

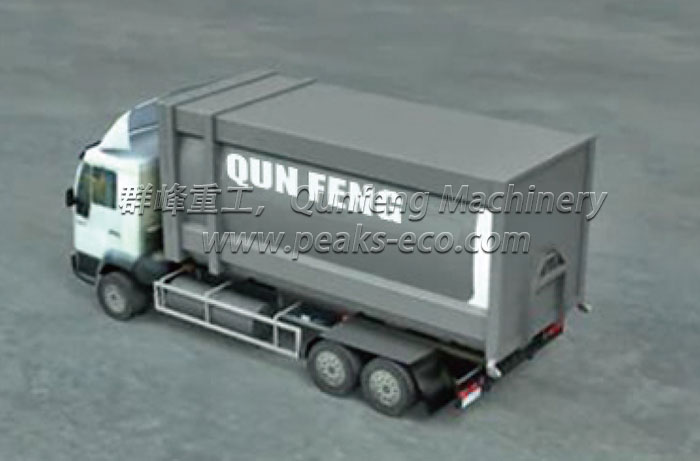

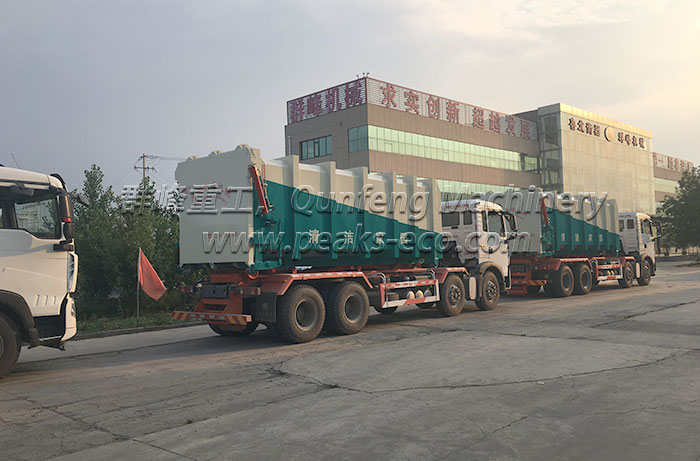

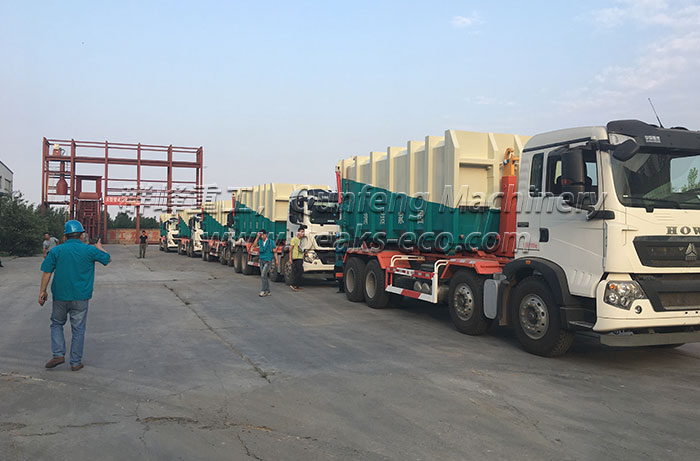

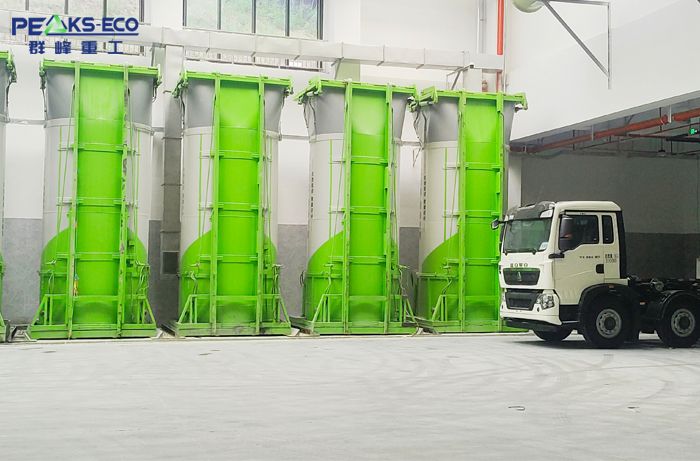

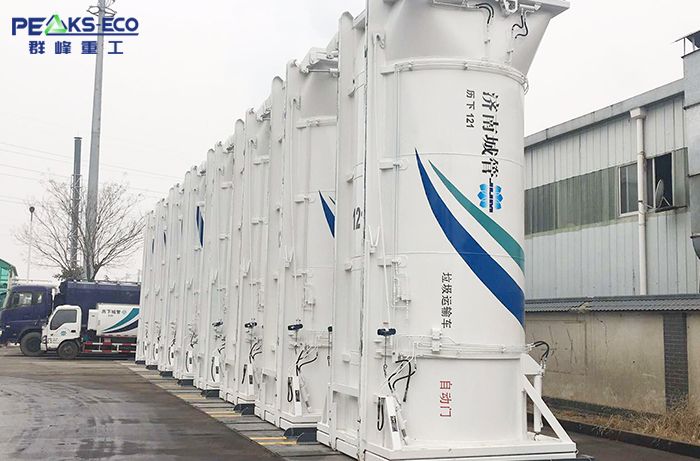

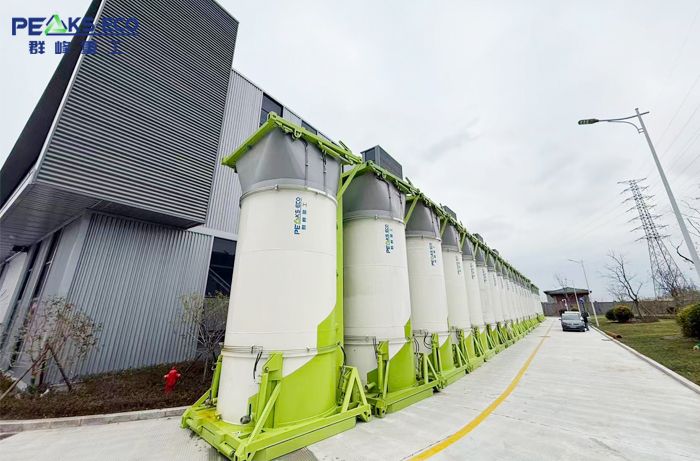

The system is composed of a 2-floor building of steal structure or concrete structure, compaction equipment, waste container, transfer vehicle and auxiliary devices. The main machines of the system are waste compactor, waste container, container displacement devices, feeding devices, waste truck, deodorization and dust-cleaning system, IOT weighing system, monitor system and automatic dispatch system. Based on waste quantity and transfer distance, different numbers of compaction equipment, container and vehicles will be considered.



Overground

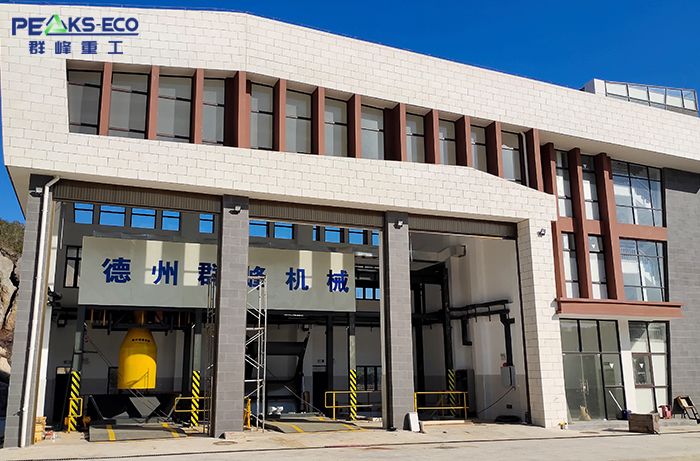

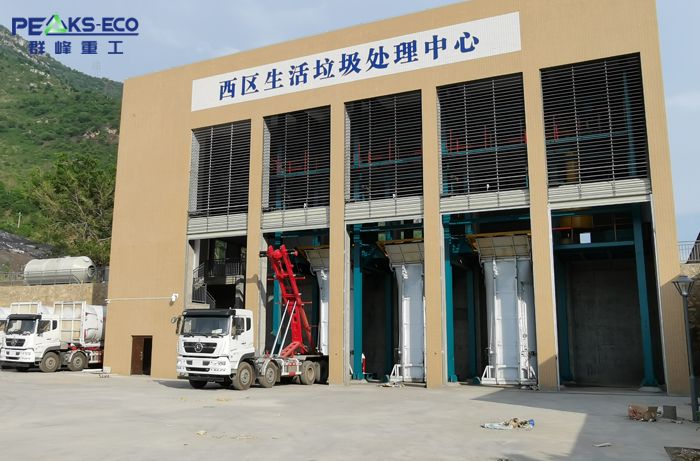

The type of transfer system requires a two-floor workshop building, the first floor of which is  where the whole set of equipment is located. The second floor is about 5~6 metres high and it is used for unloading area and other auxiliary equipment. Waste collection trucks can go up to the second floor to unload waste by the ramp way. The compactor, compaction plate, discharging hopper and discharging tank are about 20 m³ of capacity, guaranteeing that the system can handle 200T per day of waste treatment.



Underground

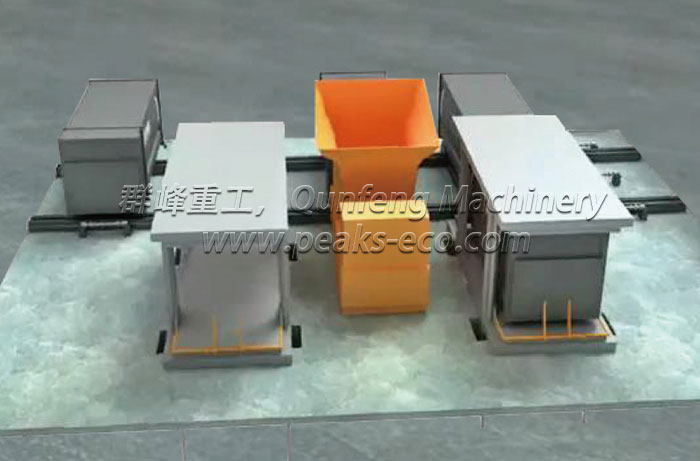

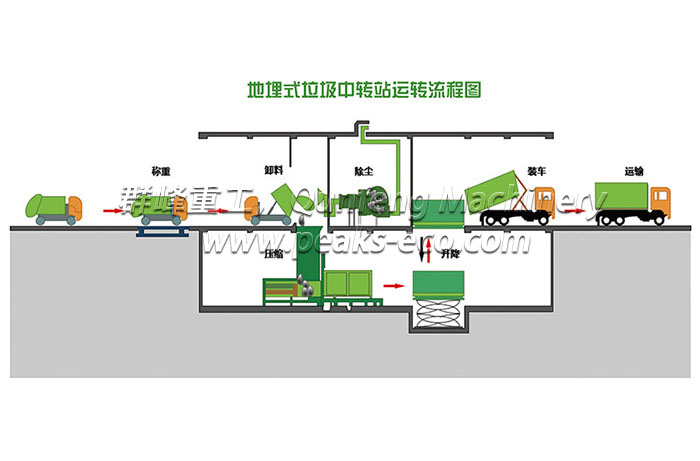

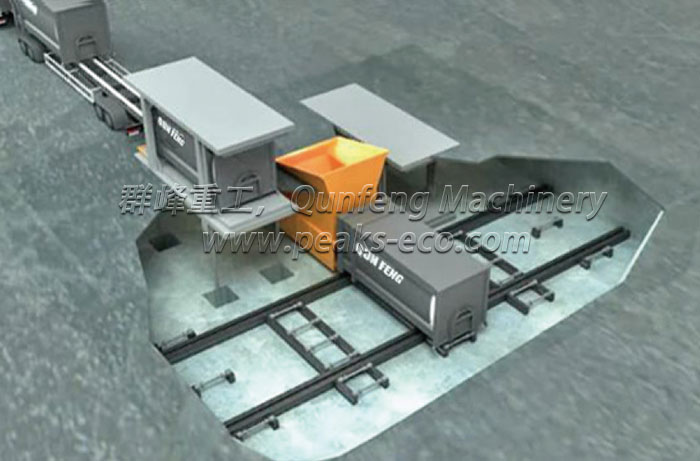

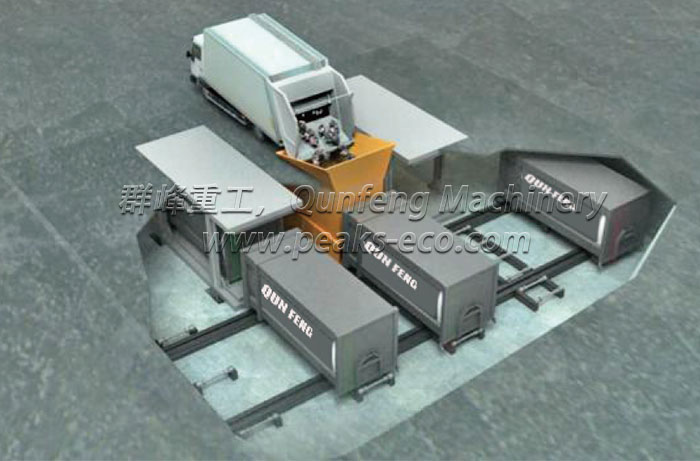

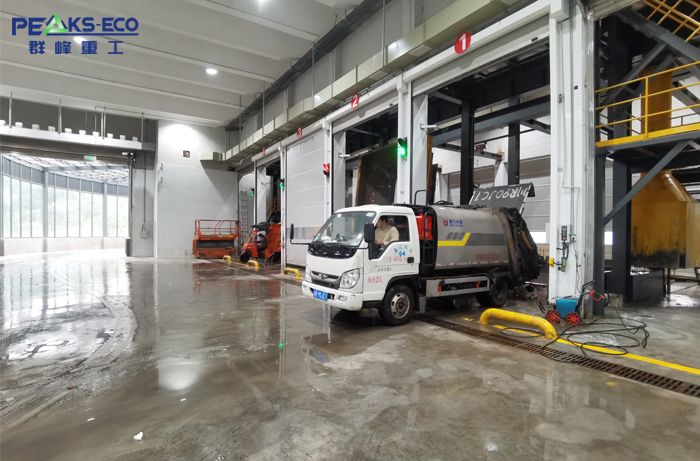

This system can guarantee a capacity of at least 200 t/d. It’s composed of compaction device, container elevator platform, container displacement device, waste container, transfer vehicles, rolling doors, monitor system, deodorization and dust-cleaning system, sprinkler, traffic control system, negavie pressure deodorization system, IOT weighing system, central control system and screen display system. The whole system is digitalized.
