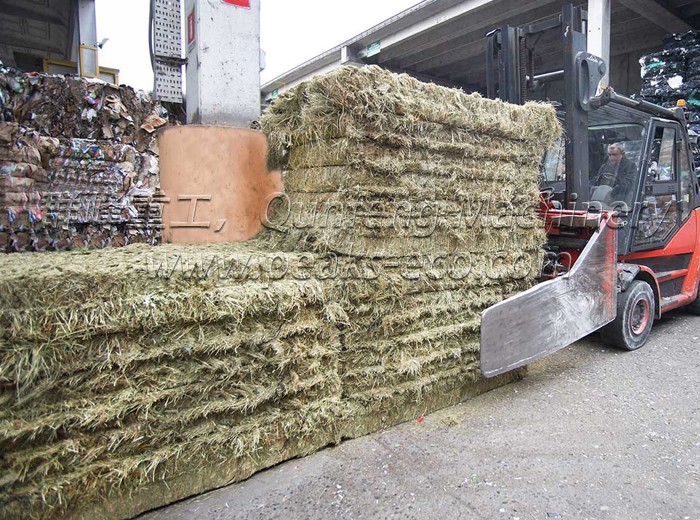

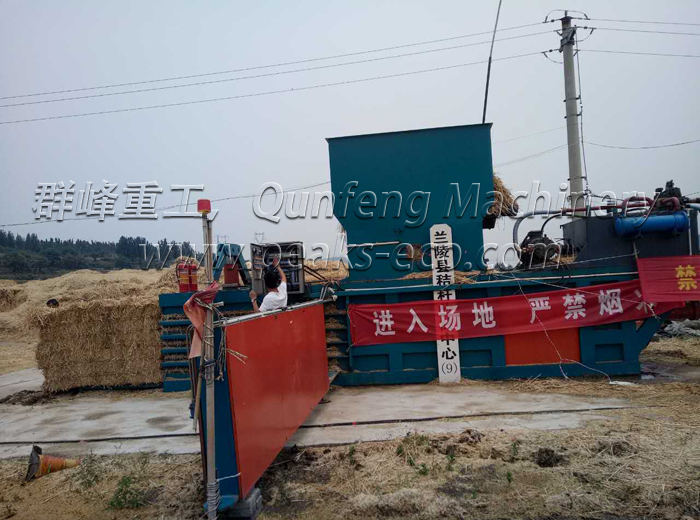

Companies operating in the agricultural sector that want to optimize storage and transport costs need to reduce the volume of certain products, such as hay. If not baled this product would occupy too much space making it impossible to transport it.
Qunfeng balers compact these materials as well, producing bales with a density 33 times higher compared to the incoming material. They are therefore particularly suitable for all those agricultural companies that need to optimize costs. The bales obtained can be stored for long periods and be used as forage during the winter season or as biomass for production of alternative energies.
The high compaction factor and the bale square format represent two essential features to reduce the occupied volumes and to facilitate storage of the raw material.
For this reason several agricultural companies around the world have already contacted Qunfeng to find a solution to their storage and transport problems.

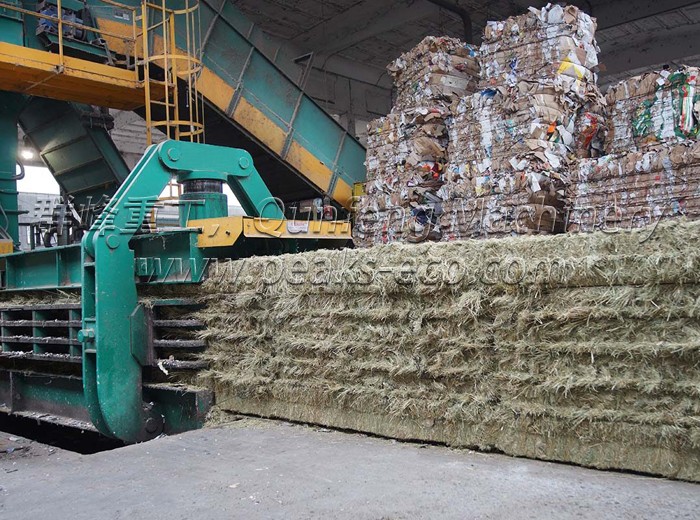

Baler is to reduce the volume of recyclable materials and produce compressed bales by using the powerful force of hydraulic cylinder. Baler is popularly used for continuous compression of wastes with recyclable value such as paper, cardboard and plastics; drum baler used for continuous compression of PET bottles, paper and cardboard. Automatic control by PLC and tight wire coupling can help produce tightly compressed bales and provide users with the convenient and safe operation. The compressed bales allow the users to have more storage space and transportation highly economical. Baler is typically installed on the final discharge section of MSW system.

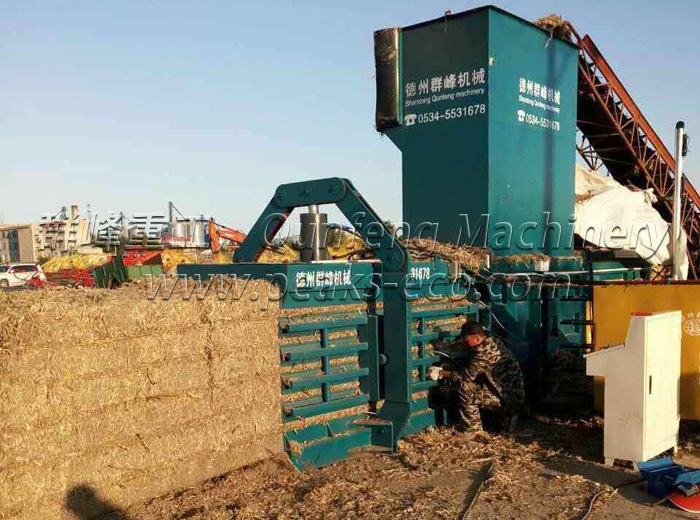

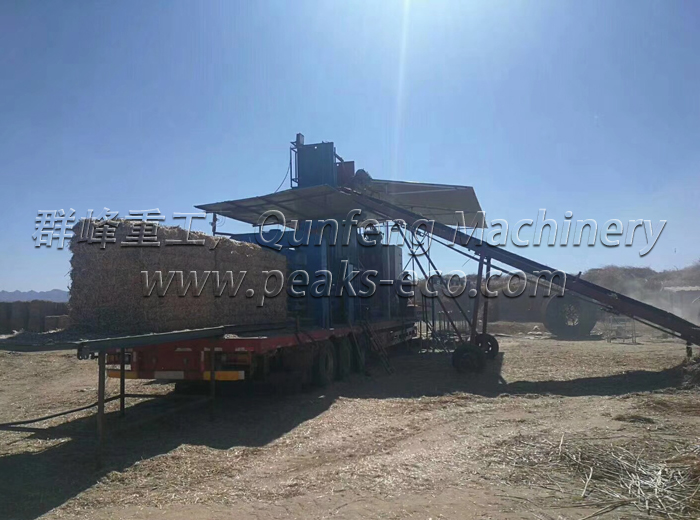

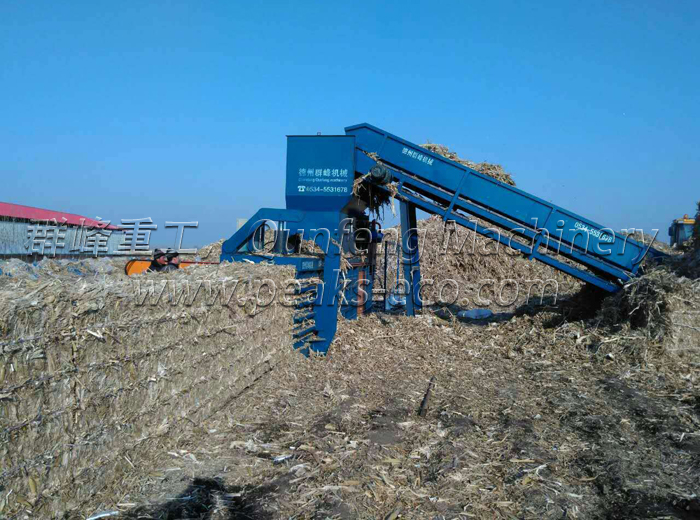

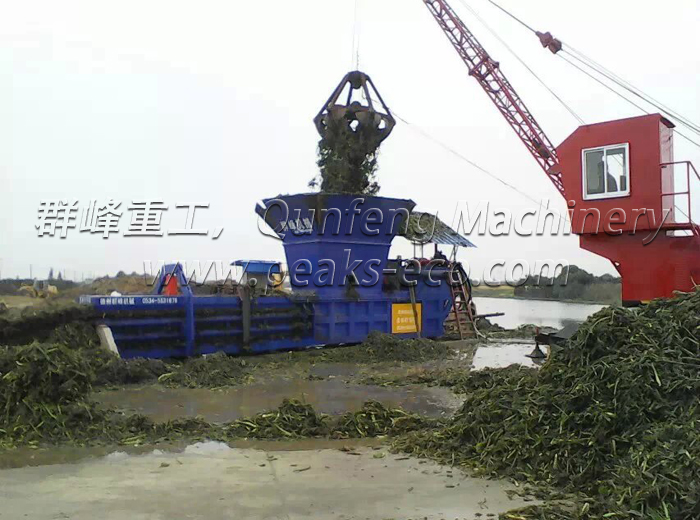

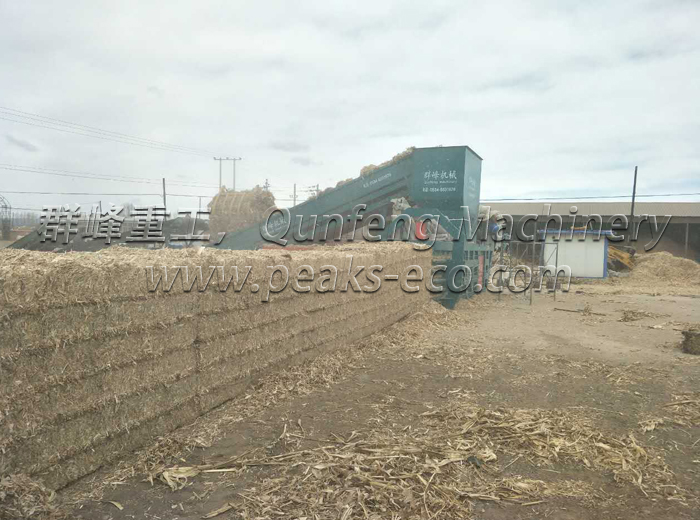

Hydraulic Press Straw Baler list
| Model | Hydraulic system pressure | Host power | Bundle size | Bundle density | Production capacity | Features |
| FDY 850 Semi Automatic Baler Machine | 1500KN | 30KW+5.5KW+4.0KW | 1100*850*L(adjustable:1500-2000)mm | 500kg/m³ | 6-12 bales/hour | Automatic operation
Space-saving vertical tying system
Horizontal taping system
Large hoppers and openings
Variable bale lengths to meet your requirements
High pressure strength produces dense bales
Easy to use controls
Easy to change wires |
| FDY 850 Full Automatic Baler Machine | 30KW+5.5KW+5.5KW | 7-10 bales/hour |
| FDY 1250 A Semi Automatic Baler Machine | 1600KN | 37KW-4+5.5KW+4.0KW | 1100*1250*L(adjustable:1500-2000)mm | 450kg/m³ | 7-10 bales/hour | Automatic operation
Horizontal tie system
Oversized hopper and feed opening
Variable bale length
High pressure strength
Easy to use touch screen controls
150 and 200 ton pressure options
10 to 25 tons per hour |
| FDY 1250 C Semi Automatic Baler Machine (Lengthen type) | 45KW+5.5KW+4.0KW | 500kg/m³ | 7-12 bales/hour |
| FDY 1250 D One Motor With Two Pump Waste Paper Baler Machine | 9-16 bales/hour |
| FDY 1250 E Semi-Automatic With Door Baler Machine | 55KW+5.5KW+4.0KW | 5-10 bales/hour | Semi-automatic operation
Manual tie down
Enclosed door for enhanced compaction
Large hopper and openings
High-pressure strength produces dense bales
Easy-to-use controls |
| FDY 1250 F Double Motor With Two Pump Waste Paper Baler Machine (Lengthen Type) | 37KW+5.5KW+4.0KW+45KW | 18-25 bales/hour | Automatic operation
Horizontal tie system
Oversized hopper and feed opening
Variable bale length
High pressure strength
Easy to use touch screen controls
200 and 300 ton pressure options
20 to 40 tons per hour |
Benefit:
1. Powerful compression by hydraulic motor
2. Continuous compressing
3. Hydraulic door mode for the safety
4. Easy to maintain compression ram
5. Automatic wire connection
6. Easy operation with PLC
