  • FDY 1250 D Full Automatic Baler (lengthen Type)
  • FDY 1250 D Full Automatic Baler (lengthen Type)
  • FDY 1250 D Full Automatic Baler (lengthen Type)

FDY 1250 D Full Automatic Baler (lengthen Type)

    This Lengthen type 1250 Auto Tie Baler Machine is generally using for agriculture and waste baling. The Peaks-eco FDY 1250 is the largest in the range and is for the very large processing sites requiring high output and produces bales of up to 2000kg, with adjustable size and options include 150 or 250 tonnes.

This Lengthen type 1250 Baler machine is generally using for agriculture and waste baling. The Peaks-eco FDY 1250 is  the largest in the Peaks-eco range and is a heavy duty horizontal baler designed to suit the largest producers of recyclable products and popular across the following industry examples: Recycling Facilities, Material Recovery Facilities (MRF’s) and also Waste Transfer Stations.

FDY 1250 D Full Automatic Baler (lengthen Type)

FDY 1250 D Full Automatic Baler (lengthen Type)

FDY 1250 D Full Automatic Baler (lengthen Type)

It is available with Horizontal Wire Tie design, with many different designs and feeding configurations available to suit each individual End User.

  • Automatic operation

  • Horizontal wire tie system

  • Extremely large hopper and feed opening

  • Variable bale length

  • High compaction force

  • Easy to use touch screen controls

  • Options for 150 and 200 tonnes pressing force

  • 10 to 25 tonnes per hour

  • Easily processes a range of materials, including: cardboard, paper, trim, paper offcuts, plastic film and beverage containers

  • Suits a range of different Industries, including: Industry, Manufacturing, Print, Packaging, Retail, Logistics, Distribution, Recycling Centres, Materials Recovery Facilities (MRF’s), Waste Transfer Stations

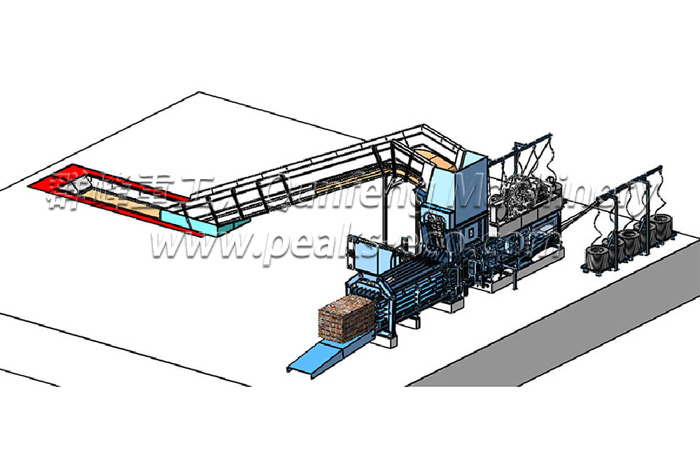

  • Configuration and processing options are numerous and these can be developed to suit your specific feeding applications to ensure optimum throughput, ideal for processing recyclable volumes and fed continuously. Different options typically include by Conveyor (belt and steel slat) feed options, mobile equipment or a potential combination of these solutions.

  • Various design options are available to suit specific suite requirements, such as hydraulic shear de-blocker, perforator on hydraulic slide system and numerous customisable bale take off options to suit site layouts.

FDY 1250 D Full Automatic Baler (lengthen Type)

Parameters of 1250 D one motor   with two pump waste paper baler machine (Lengthen type)

1

Main   cylinder

Mode

Φ280

Travel

2700mm

Homemade cylinder

Nominal   force

1500KN

Amount

1 set

2

Side   plate of main cylinder

12#


3

Pressure   of hydraulic system

1600KN


4

Feed   Opening size

1100*2000mm


5

Bale   size

1100*1250*L(adjustable:1500-2000)

5 lines

6

Bale   density

500kg/m³


7

Main   engine power

45KW+5.5KW+4.0KW


8

Power   supply specification

30m²soft   copper


9

Packaging   line

12# iron   wire


10

Operation   Way

Manual   operation / linkage


11

Cooler

8 m²/10m²


12

Production   efficiency

9-16   bales/hour


13

Hydraulic   pump mode

Plunger   pump 250ml/r*1

Gear   pump16ml/r*1

Vane pump 16 ml/r*1

FWD

14

Capacity   of Fuel tank

1.5 m³


15

Conveyor

W   2*10.5m
