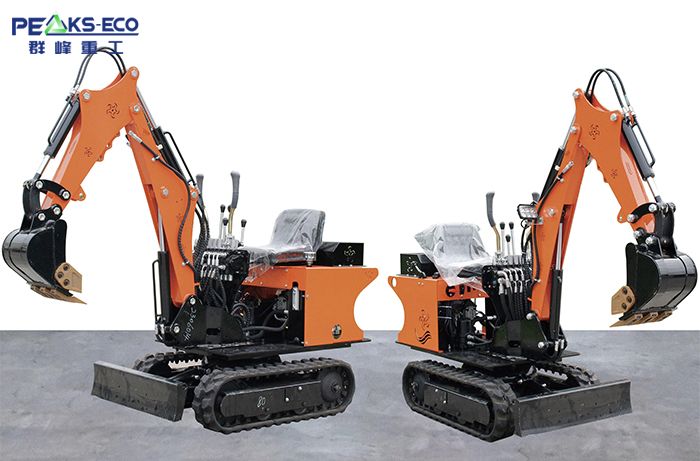

KV08 MINI EXCAVATOR

KV08 MINI EXCAVATOR

Certification:

Bucket Capacity

0.02

Chassis Width

760mm

Track Length

805mm

Gradeability

20°

Chassis Ground Clearance

385mm

Track Width

150mm

Volume of fuel tank

5L

Overall Dimension

2000*760*1880mm

Transport Length

2200mm

Excavator Height

1880mm

Hydraulic flow

18L/Min

Hydraulic tank capacity

12L

Working pressure

16Mpa

Engine

KOOP 192F Diesel Engine (Euro 5)

Engine Power

7.5KW/10HP

EPA Engine Optional

Briggs&Stratton gasoline /13.5hp

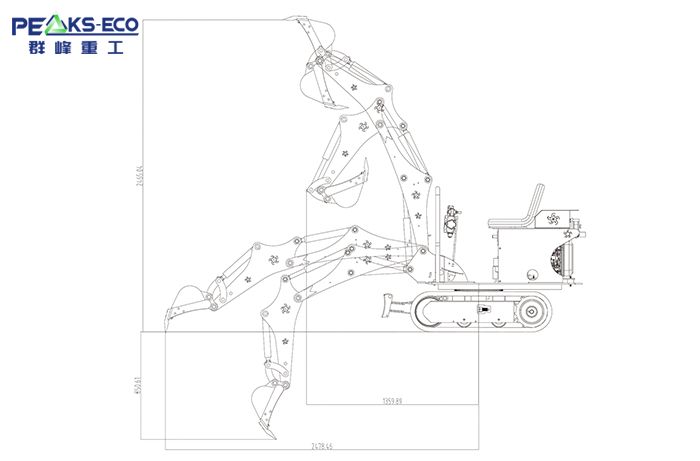

Max.Digging Height

2500mm

Max.Dumping Height

1600mm

Max.Digging Depth

850mm

Max.Digging Radius

2478mm

Turning Radius

1360mm

Bucket excavating force

11KN

Operation Weight

700kg

Configuration

Valve:Beifang Brand

Pump:Xingzou Brand

Load sensitive system

KV08 MINI EXCAVATOR

KV08 MINI EXCAVATOR

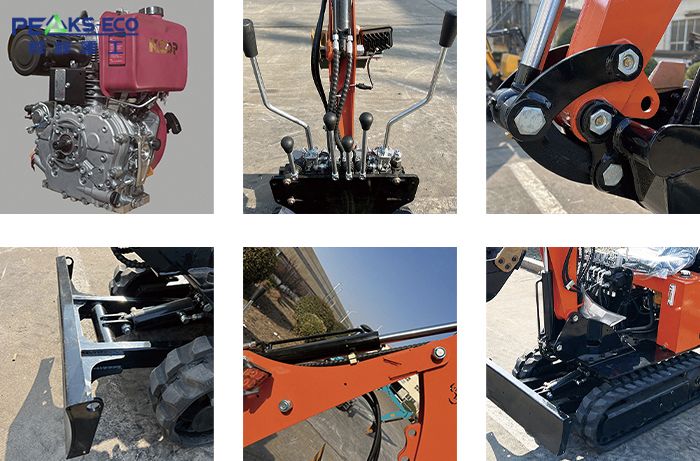

1.Koop 192F diesel engine and B&S gasoline engine.

2.Double hand front operation system,easy to operate.

3.The pin comes with grease fitting,more lubricating.

4.The bulldozer blade is widened and thickened,durable.

5.Strong cylinder, imported seals, good flexibility, longer use time.

6.I-shaped industrial chassis, engineering rubber track, can be used in all terrain.
