Certification:
Bucket Capacity | 0.025m³ |
Chassis Width | 930mm |
Track Length | 926mm |
Gradeability | 20° |
Chassis Ground Clearance | 385mm |
Track Width | 180mm |
Volume of fuel tank | 5L |
Overall Dimension | 2170*930*2200mm |
Transport Length | 2550mm |
Excavator Height | 2200mm |
Hydraulic flow | 18L/Min |
Hydraulic tank capacity | 12L |
Working pressure | 16Mpa |
Engine | KOOP 192F Diesel Engine (Euro 5) |
Engine Power | 7.5KW/10HP |
EPA Engine Optional | Briggs&Stratton gasoline /13.5hp |
Max.Digging Height | 2495mm |
Max.Dumping Height | 1600mm |
Max.Digging Depth | 1540mm |
Max.Digging Radius | 2400mm |
Turning Radius | 1190mm |
Bucket excavating force | 11KN |
Operation Weight | 800kg |
Configuration | Valve:Beifang Brand Pump:Xingzou Brand Load sensitive system |

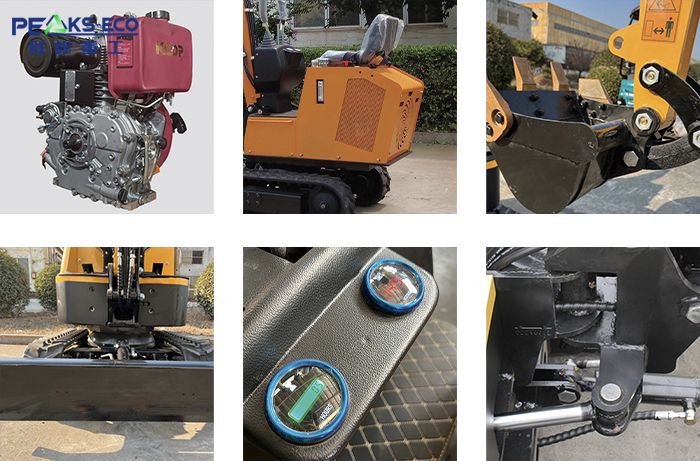

1.Koop 192F diesel engine and B&S gasoline engine.
2.Full steel body, integrated hydraulic oil tank.
3.The pin comes with grease fitting,more lubricating.
4.The bulldozer blade is widened and thickened,durable.
5.Timer and voltmeter.
6.Swing boom optional.
