Certification:
Bucket Capacity | 0.035m³ |
Chassis Width | 1100mm-1400mm |
Track Length | 1500mm |
Gradeability | 40° |
Chassis Ground Clearance | 385mm |
Track Width | 230mm |
Overall Dimension | 3700*1100/1400*2203mm |
Transport Length | 3700mm |
Excavator Height | 2203mm |
Battery Capacity | 200Ah |
Battery Voltage | 72V |
Charging Time | 6H-8H |
Decibels within 1 meter | <55 |
Engine | Lithium Battery |
Motor Power | 6KW |
Power consumption per hour | 1KW/h |
Max.Digging Height | 3200mm |
Max.Dumping Height | 2290mm |
Max.Digging Depth | 2241mm |
Max.Digging Radius | 3800mm |
Turning Radius | 1645mm |
Bucket excavating force | 16KN |
Operation Weight | 2000kg |
Configuration | Valve:Beifang Brand Pump:Xingzou Brand Load sensitive system |

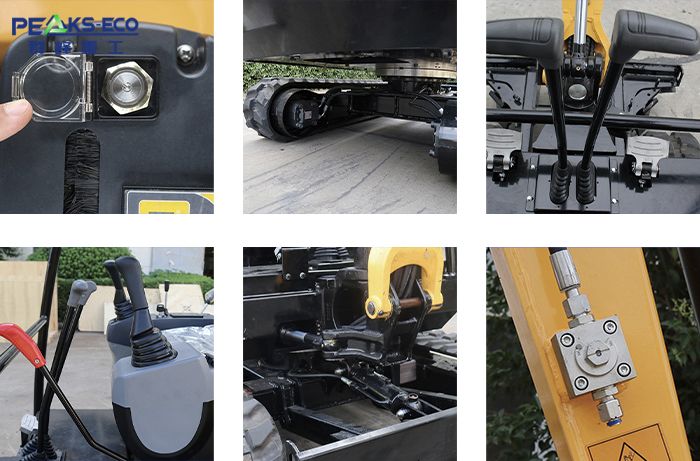

1.Comes with one key start function, avoid losing and finding key trouble.
2.Equipped with high and low speed motors, strong power performance, strong starting and climbing.
3.Foot-operatedcrushing.walkingcrushing is notWrong.
4.The safety lock is in a locked state to prevent and protect the vehicle when getting out or stopping without extinguishing the fire.
5.Swing Boom optional.
6.Hammer cut-off valve, durable and wear-resistant cast steel material, good mechanical performance, prevent oil dripping and leakage.
