Certification:
Bucket Capacity | 0.025m³ |
Chassis Width | 1000mm |
Track Length | 926mm |
Gradeability | 20° |
Chassis Ground Clearance | 385mm |
Track Width | 180mm |
Volume of fuel tank | 7L |
Overall Dimension | 2450*1000*2200mm |
Transport Length | 2450mm |
Excavator Height | 2200mm |
Hydraulic flow | 28L/Min |
Hydraulic tank capacity | 12L |
Working pressure | 16Mpa |
Engine | KOOP 292 |
Engine Power | 15KW/20HP |
Euro5&EPA4 Engine optional | Kubota D722 |

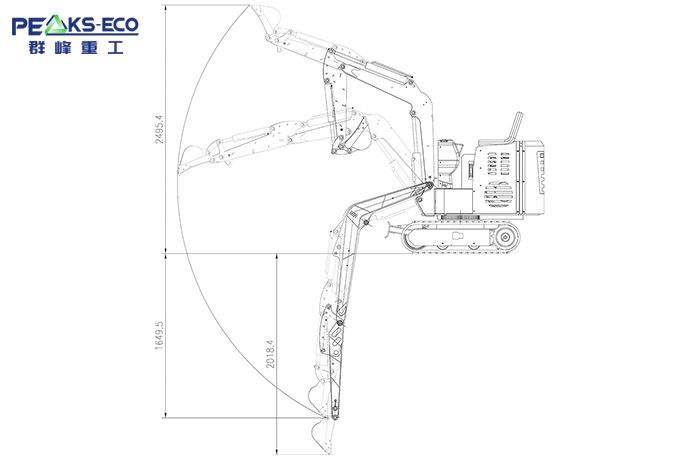

Max.Digging Height | 2550mm |
Max.Dumping Height | 1600mm |
Max.Digging Depth | 1650mm |
Max.Digging Radius | 2400mm |
Turning Radius | 1550mm |
Bucket excavating force | 13.5KN |
Operation Weight | 1000kg |
Configuration | Valve:Beifang Brand Pump:Xingzou Brand Double Pump Load Sensitive Korea Traveling motor |

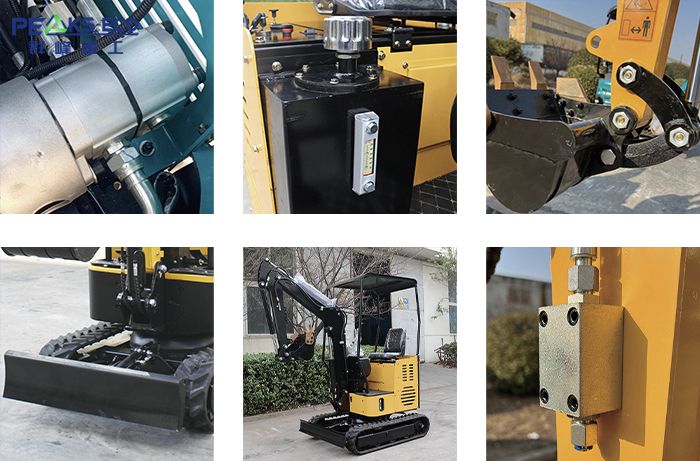

1.Dual pumps load sensitive,soft and powerful in action, faster travel speed,low engine temperature,energy and oil saving.
2.Vertical hydraulic oil tank, suitable for use in mountains, hills, and terraced fields, and can climb 40°steep slopes.
3.The pin comes with grease fitting,more lubricating.
4.The bulldozer blade is widened and thickened, making it durable.
5.All-steel body, durable use.
6.Hammer cut-off valve durable and wear-resistant cast steel material, precise interface, good mechanical performance, prevent oil dripping and oil leakage.
