Certification:
Engine brand | Electric/koop/Runtong/Zhongcheng/B&S |
Rated power | 6kw、72V、125ah/7.5/8.6/8.5/9.9kw |
Number of cylinders | Naturally Aspirated |
Air intake way | Naturally Aspirated |
Emissions standards | EURO5/EPA |
Rated operating capacity | 200Kg |
Maximum operating capacity | 300Kg |
Maximum breakout force | 3.5KN |
Bucket capacity | 0.12m³ |
Driving speed | 0-6km/h |
Total cycling time | 9s |
System operating pressure | 17-21bar |
Fuel tank capcity | 5L |
Operating weight | 900KG |
Track model | 180*72*35 |
Vehicle height | 1300mm |
Length with standard bucket | 2070mm |
Vehicle width (standard tire) | 920mm |
Length without standard bucket | 1640mm |
Bucket width | 1050mm |
Tail length | 500mm |
Height at maximum extension | 2400mm |
Height to the the bucket pin | 1870mm |
Maximum height as lay the bucket flat | 1720mm |
Dumping height | 1510mm |
Discharge distance | 250mm |
Track contact with ground length | 900mm |
Ground clearance | 130mm |
The flip angle of the bucket on the ground | 27° |
Bucket flip angle at highest position | 114° |

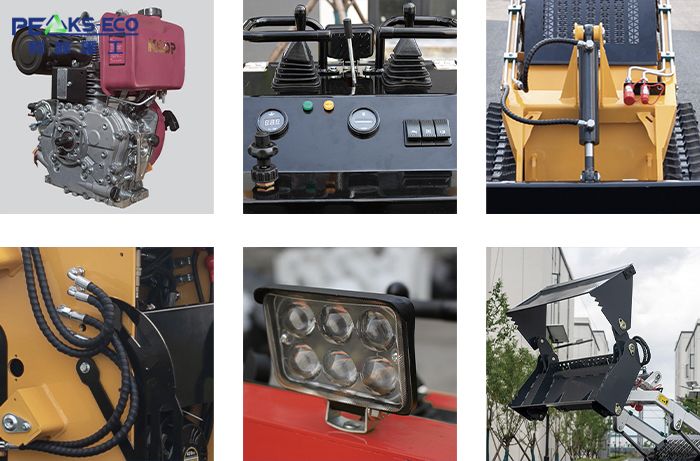

1.Koop192 Runtong and Briggs & Stratton engines or electric motors are available for selection.
2.Central control, easy to use and operate.
3.High-quality hydraulic cylinders, simple construction, reliable operation, no transmission clearance and smoothly.
4.Wear-resistant oil pipes and elastic rubber materials to ensure the elasticity of hydraulic cylinders.
5.LED lights have long service life and natural lighting effect.
6.We have multiple accessories, versatility, quick-change mountings.
