Certification:
Engine brand | Electric/ Laidong 385/Yanmar380 |
Rated power | 8kw、72v、20ah/18.6/18.4kw |
Number of cylinders | 3 |
Air intake way | Naturally Aspirated |
Emissions standards | EURO5/EPA |
Rated operating capacity | 400Kg |
Maximum operating capacity | 450Kg |
Maximum breakout force | 4.5KN |
Bucket capacity | 0.15m³ |
Driving speed | 0-6km/h |
Total cycling time | 9s |
System operating pressure | 25bar |
Fuel tank capcity | 30L |
Operating weight | 1400KG |
Track model | 180*72*45 |
Vehicle height | 1550mm |
Length with standard bucket | 2700mm |
Vehicle width (standard tire) | 970mm |
Length without standard bucket | 2070mm |
Bucket width | 1270mm |
Tail length | 500mm |
Height at maximum extension | 2920mm |
Height to the the bucket pin | 2300mm |
Maximum height as lay the bucket flat | 2140mm |
Dumping height | 1700mm |
Discharge distance | 150mm |
Track contact with ground length | 1300mm |
Ground clearance | 240mm |
The flip angle of the bucket on the ground | 27° |
Bucket flip angle at highest position | 114° |

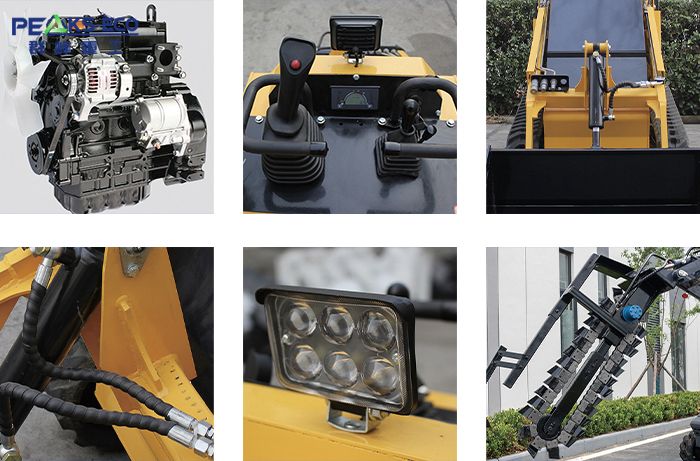

1.It is equipped with the Yanmar 3TNV80 three-cylinder water-cooled engine, which has sufficient horsepower.
2.Hydraulic pilot operation, which is easy to use and more flexible.
3.High-quality hydraulic cylinders, simple construction, reliable operation, no transmission clearance and smoothly.
4.Wear-resistant oil pipes and elastic rubber materials to ensure the elasticity of hydraulic cylinders.
5.LED lights have long service life and natural lighting effect.
6.We have multiple accessories, versatility, quick-change mountings.
