  • YZ-S55  SLIP LOADER

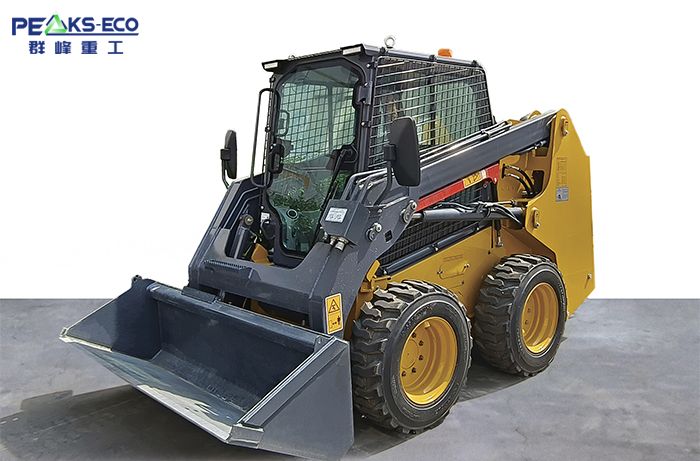

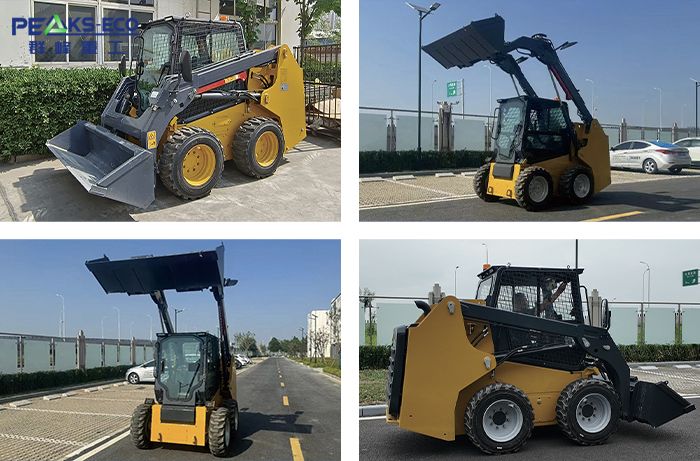

YZ-S55 SLIP LOADER

YZ-S55 SLIP LOADER

Certification:

Engine Model

Yanmar4TNV86/Cummins

Rated power

35.5KW/36.8KW

Cylinder

4

Intake method

Naturally aspirated

Emissions standards

EPA/Euro5

Rated load

890Kg

Overturning load

≥1780

Maximum digging force

≥25KN

Bucket capacity

0.4

Travel speed

0-12km/h

Hydraulic flow

55L/Min

Hydraulic pressure

21Mpa

Fuel tank capcity

80L

Operation quality

2880±3%

Tire model

10-10.5

Maximum operating height

3790mm

Height to bucket pin

3020mm

Cab roof height

2095±5%mm

Horizontal length of bucket on the ground

3450±5%mm

Bucket pin horizontal length

2700±5%mm

Max horizontal distance of bucket bottom

2846±5%mm

Maximum unloading height

2384±5%mm

Unloading distance

520±1%mm

Flip angle of bucket on the ground

27±2mm

Flip angle of bucket at the highest position

43±2mm

Wheel width

1370mm

Ground clearance

185±2%mm

Tail length

1160±5%mm

Vehicle width

1640±2%mm

Bucket width

1800±2%mm

YZ-S55 SLIP LOADER

YZ-S55 SLIP LOADER

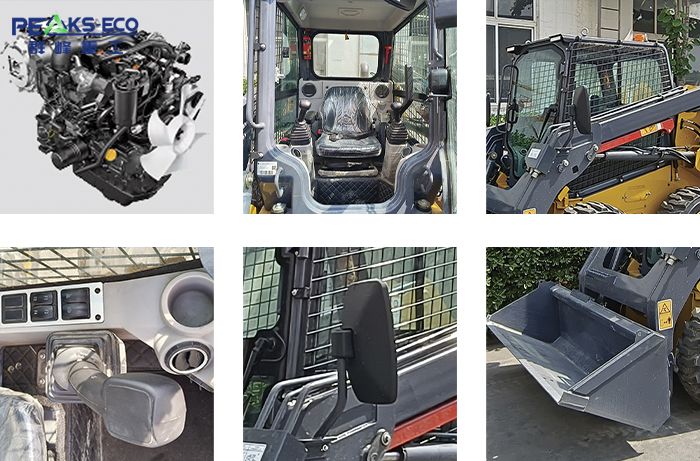

1.You can choose between the Yanmar 4TNV86 and the Cummins HFC4DA1 four - cylinder water - cooled engines.

2.Minimalist central control, easy to use and operate.

3.Standard cab, safer and more reliable, dustproof and noiseproof.

4.Hydraulic pilot operation, more flexible and smooth operation.

5.With rearview mirror, safe operation, safer construction.

6.Thickened bulldozer can be adjusted up and down.
