Certification:
Bucket Capacity | 0.025m³ |
Chassis Width | 930mm |
Track Length | 926mm |
Gradeability | 20° |
Chassis Ground Clearance | 150mm |
Track Width | 180mm |
Volume of fuel tank | 5L |

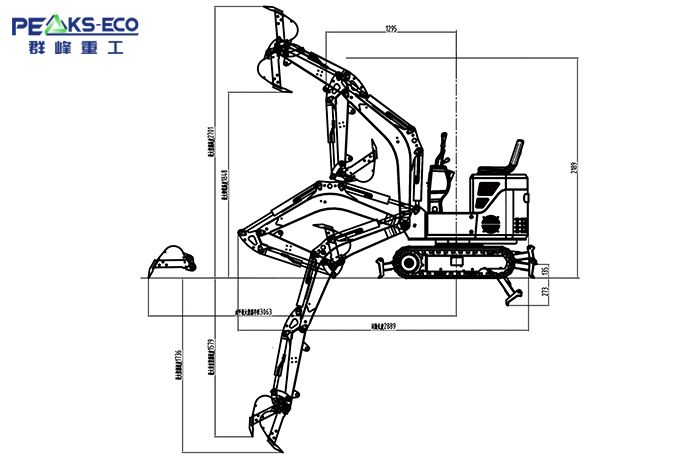

Overall Dimension | 2890*930*2190mm |
Transport Length | 2890mm |
Excavator Height | 2190mm |
Hydraulic flow | 21L/Min |
Hydraulic tank capacity | 14L |
Working pressure | 18Mpa |
Engine | KOOP 192F Diesel Engine (Euro 5) |
Engine Power | 7.5KW/10HP |
EPA Engine Optional | gs&Stratton gasoline /13.5hp |
Max.Digging Height | 2700mm |
Max.Dumping Height | 1845mm |
Max.Digging Depth | 1735mm |
Max.Digging Radius | 3063mm |
Turning Radius | 1295mm |
Bucket excavating force | 7.2KN |
Operation Weight | 850kg |

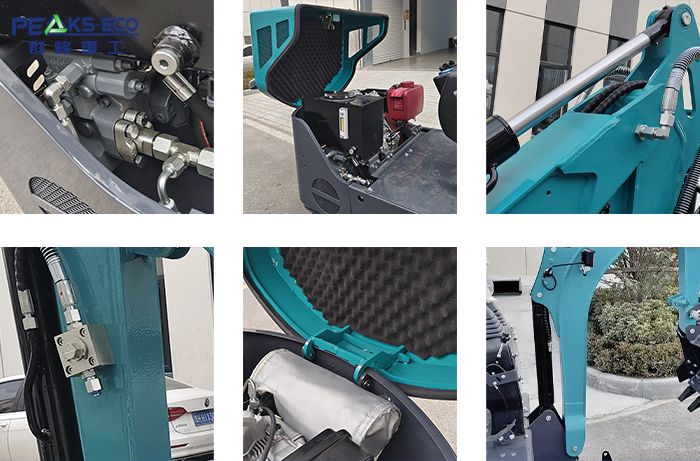

Configuration | Plunger pump Built-in hydraulic pipes Tilt-up cabin Top-mounted hydraulic cylinders Shut-off valve |
1.The standard configuration includes a plunger pump,high flow, high pressure resistance, is less prone to overheating, and ensures smooth operation.
2.The engine hood is rear-hinged, servicing easy.
3.Work hydraulic hoses are internal, making them less prone to abrasion and damage.
4.Equipped with a shut-off valve, easy to switch attach ments.
5.Enhanced heat insulation and soundproofing effects.
6.Boom cylinder is positioned on top, increasing the boom digging force.
