  • MINI DUMPER

MINI DUMPER

MINI DUMPER

Certification:

Engine Model

B&S

Rated power

6.5HP

Cylinder

Single

Intake method

Natural Aspiration

Emissions standards

EURO5/EPA

Fuel capacity

3.5L

Oilcapacity

0.6L

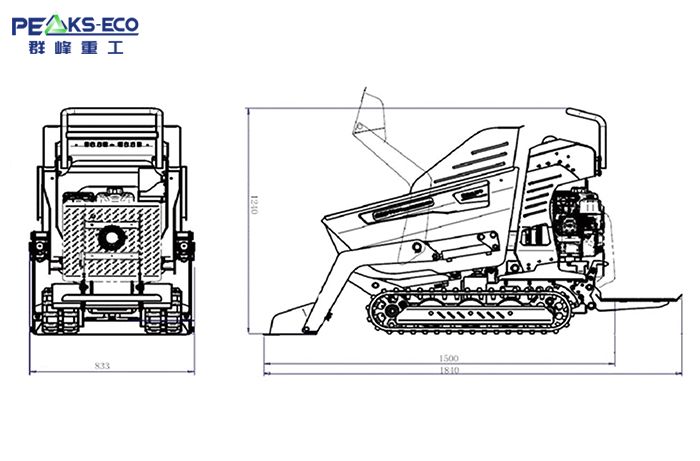

L×WxH

1517x870x1278mm

Cargo box volume

0.22

Hydraulic oil No.

46# Anti-wear hydraulic oil

Hydraulic oil tank capacity

7L

Gradability

20°

Minimum ground clearance

85mm

Minimum turning radius

950mm

Crawler center distance

520mm

Travel speed

1.7/3.5(km/h)

Travel motor maximum torque

805Nm

Travel motor maximum working pressure

20MPa

Travel motor displacement

200cc

Travel motor brand

Like Hydraulic

Vehicle weight

400Kg

Maximum load

500Kg

MINI DUMPER

MINI DUMPER

MINI DUMPER

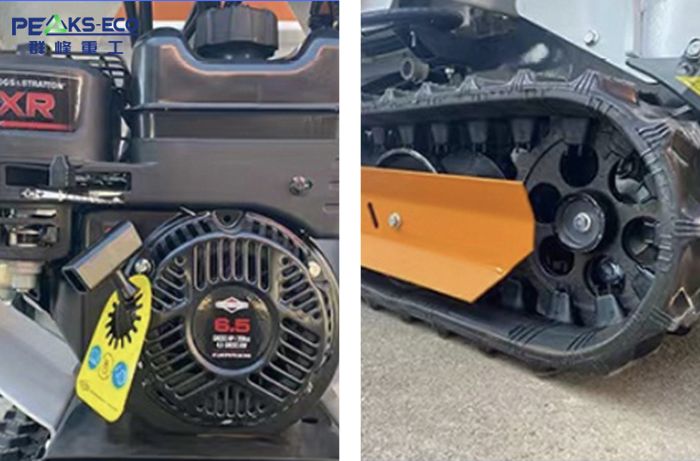

1.Powerful gasoline engine

Adopt 6.5horsepower gasoline engine, easy to start, stable power, reliable quality, low failure rate.

2.Special wear-resistantrubber track

Specialized track chassis, good wear resistance and anti-skid performance, nocrushing ofthe ground, can climb 20° slope.
