Certification:
Engine brand | Electric/koop/Runtong/B&S |
Rated power | 8kw、72v、200ah/15/19.2/17kw |
Number of cylinders | 2 |
Air intake way | Naturally Aspirated |
Emissions standards | EURO5/EPA |
Rated operating capacity | 250Kg |
Maximum operating capacity | 350Kg |
Maximum breakout force | 4.5KN |
Bucket capacity | 0.12m³ |
Driving speed | 0-6km/h |
Total cycling time | 9s |
System operating pressure | 17-21bar |
Fuel tank capcity | 10L |
Operating weight | 1200KG |
Wheel size | 23*8.5-12 |
Vehicle height | 1300mm |
Length with standard bucket | 2700mm |
Vehicle width (standard tire) | 1100mm |
Length without standard bucket | 2300mm |
Bucket width | 1050mm |
Tail length | 500mm |
Height at maximum extension | 2530mm |
Height to the the bucket pin | 1933mm |
Maximum height as lay the bucket flat | 1740mm |
Dumping height | 1400mm |
Discharge distance | 595mm |
Wheelbase | 940mm |
Ground clearance | 180mm |
The flip angle of the bucket on the ground | 27° |
Bucket flip angle at highest position | 114° |

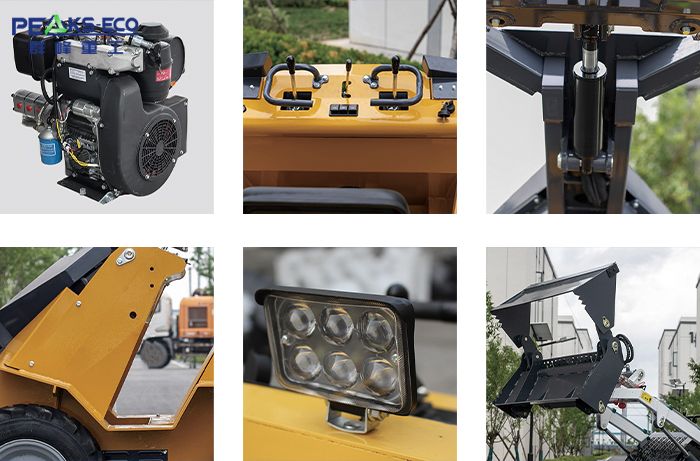

1.Koop292 Runtong and Briggs & Stratton engines or electric motors are available for selection.
2.Central control, easy to use and operate.
3.High-quality hydraulic cylinders, simple construction, reliable operation, no transmission clearance and smoothly.
4.The hidden hydraulic oil pipe is simple and beautiful.
5.LED lights have long service life and natural lighting effect.
6.We have multiple accessories, versatility, quick-change mountings.
