Certification:
Bucket Capacity | 0.025m³ |
Chassis Width | 1100mm |
Track Length | 1030mm |
Gradeability | 20° |
Chassis Ground Clearance | 385mm |
Track Width | 180mm |
Volume of fuel tank | 5L |

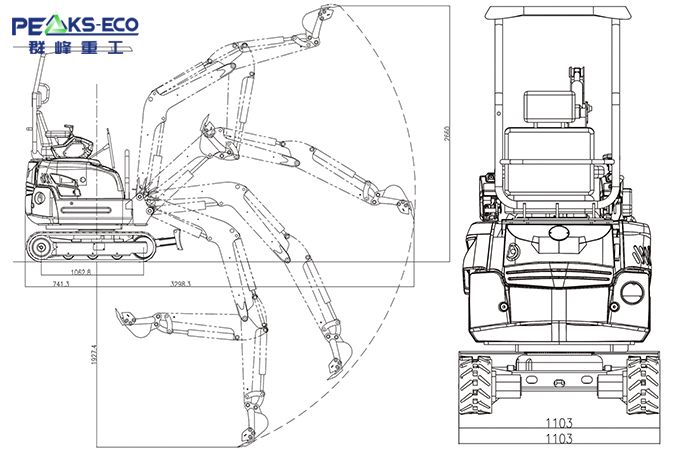

Overall Dimension | 2200*1100*2200mm |
Transport Length | 2400mm |
Excavator Height | 2200mm |
Hydraulic flow | 18L/Min or 27L/Min |
Hydraulic tank capacity | 12L |
Working pressure | 16Mpa |
Engine | KOOP 192F Diesel Engine (Euro 5) |
Engine Power | 7.5KW/10HP |
EPA Engine Optional | Briggs&Stratton gasoline /13.5hp |
Max.Digging Height | 2550mm |
Max.Dumping Height | 1710mm |
Max.Digging Depth | 1740mm |
Max.Digging Radius | 3100mm |
Turning Radius | 1635mm |
Bucket excavating force | 11KN |
Operation Weight | 1100kg |
Configuration | Valve:Beifang Brand Pump:KJun Brand Piston pump Eaton Walking Motor |

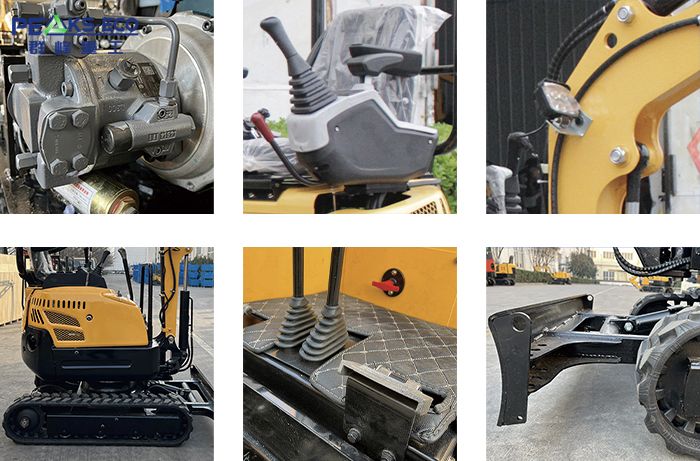

1.Piston pump load sensitive, soft and powerful action, low engine temperature, energy and fuel saving.
2.Hydraulic Pilot Operation ,easy to operate.
3.The excellent lighting performance of the LED headlamps.
4.No Tail,flexible operation.
5.Foot-operated crushing, walking crushing is not wrong.
6.The bulldozer blade is widened and thickened, making it durable.
