Certification:
Bucket Capacity | 0.03m³ |
Chassis Width | 1100mm |
Track Length | 1300mm |
Gradeability | 40° |
Chassis Ground Clearance | 385mm |
Track Width | 180mm |

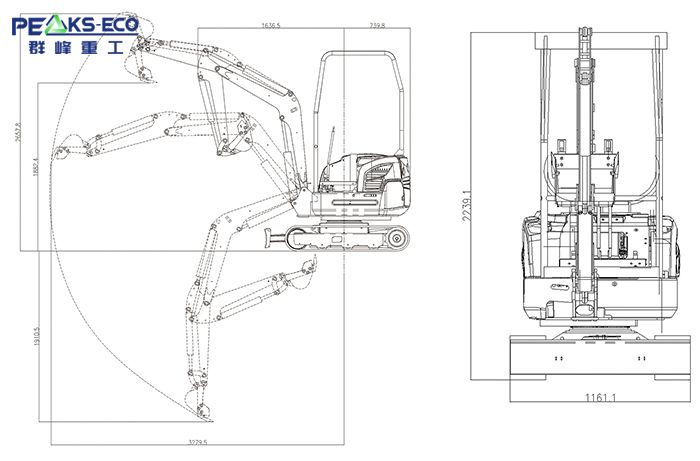

Overall Dimension | 2200*1100*2200mm |
Transport Length | 2200mm |
Excavator Height | 2200mm |
Battery Capacity | 200Ah |
Battery Voltage | 72V |
Charging Time | 6H-8H |
Decibels within 1 meter | <55 |
Engine | Lithium Battery |
Motor Power | 6KW |
Power consumption per hour | 1KW/h |
Max.Digging Height | 2700mm |
Max.Dumping Height | 1900mm |
Max.Digging Depth | 1910mm |
Max.Digging Radius | 3280mm |
Turning Radius | 1636mm |
Bucket excavating force | 15KN |
Operation Weight | 1500kg |
Configuration | Valve:Beifang Brand Pump:KJun Brand Double Gear Pump |

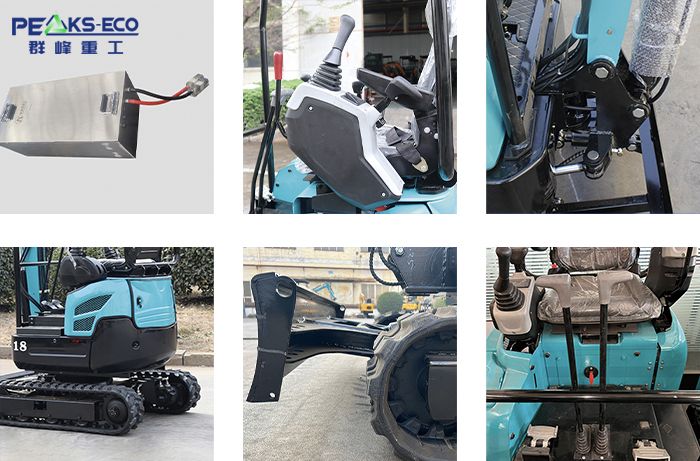

1.Lithium battery, energy and fuel saving.
2.Hydraulic Pilot Operate,easy to operate.
3.Swing Boom optional.
4.The track length of 41 sections increases the ground contact area and makes walking more stable. Tailless swing, flexible and convenient.
5.The bulldozer blade is widened and thickened,durable.
6.Operation lever, simple and flexible, easy to operate.
