Bucket Capacity | 0.03m³ |
Chassis Width | 1100mm |
Track Length | 1100mm |
Gradeability | 20° |
Chassis Ground Clearance | 150mm |
Track Width | 180mm |
Volume of fuel tank | 17L |

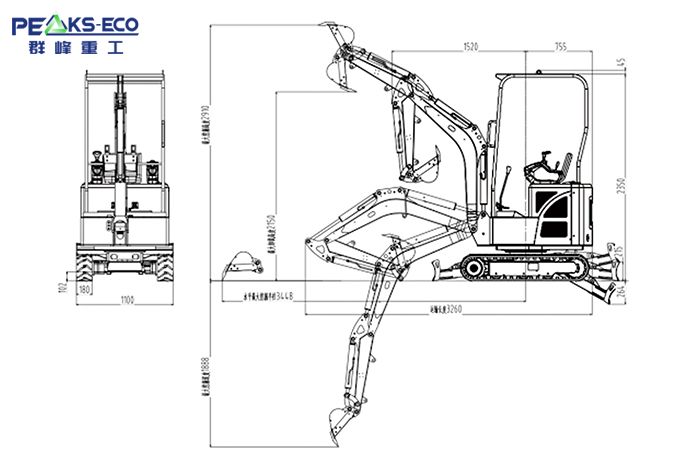

Overall Dimension | 3260*1100*2400mm |
Transport Length | 2890mm |
Excavator Height | 2400mm |
Hydraulic flow | 40L/Min |
Hydraulic tank capacity | 18L |
Working pressure | 18Mpa |
Engine | LL380B |
Engine Power | 14.7kw/20hp |
EPA Engine Optional | |
Max.Digging Height | 2910mm |
Max.Dumping Height | 2150mm |
Max.Digging Depth | 1880mm |
Max.Digging Radius | 3448mm |
Turning Radius | 1520mm |
Bucket excavating force | 10KN |
Operation Weight | 1430kg |
Configuration | Plunger pump Built-in hydraulic pipes Tilt-up cabin Top-mounted hydraulic cylinders Shut-off valve |

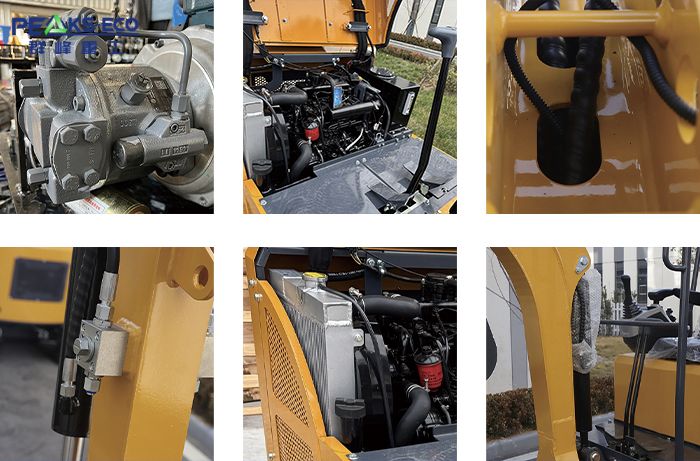

1.The standard configuration includes a plunger pump,high flow, high pressure resistance, is less prone to overheating, and ensures smooth operation.
2.The engine hood is rear-hinged, servicing easy.
3.Work hydraulic hoses are internal, making them less prone to abrasion and damage.
4.Equipped with a shut-off valve, easy to switch attach ments.
5.Three-cylinder water-cooled engine with sufficient horsepower.
6.Boom cylinder is positioned on top, increasing the boom digging force.
